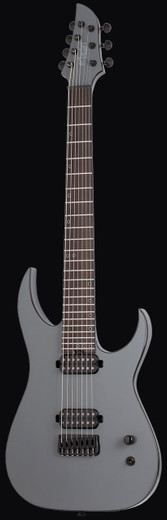

Schecter built the Keith Merrow KM-7 Mk-III Hybrid as a signature seven-string instrument developed in collaboration with guitarist Keith Merrow, positioned within Schecter's artist series as a high-specification extended-range guitar. It was manufactured in South Korea and constructed via a neck-through body joint with ultra access, pairing a mahogany body with a three-piece maple neck reinforced by carbon fiber rods.
The neck carried an Ultra Thin 'C' profile measuring .748" at the first fret and .787" at the twelfth, topped with an ebony fretboard running a 12"-16" compound radius and fitted with 24 X-jumbo stainless steel frets. The nut was an Ernie Ball Compensated unit at 1.889" (48mm) width, and the truss rod offered two-way adjustment via a heel-access spoke wheel. Luminlay glow-in-the-dark side dot markers and aluminum offset/reverse circle inlays defined the fretboard visually. Electronics consisted of two Fishman Fluence Keith Merrow Humbucker pickups routed through a volume control and three-way switch, powered by a 9-volt clip-in battery compartment. Hardware was finished in black throughout, with the bridge a Hipshot Hardtail with string-through-body stringing, Schecter locking tuners, and metal knurled knobs secured by set screws. The body featured a radius top contour and black single-ply binding. The instrument shipped strung with Ernie Ball seven-string gauges (.009/.011/.016/.026/.036/.046/.062) at a 26.5" (673mm) scale.
Owners requiring setup adjustments, fret work, or sourcing of compatible Hipshot Hardtail, Fishman Fluence, or Ernie Ball Compensated Nut replacement parts should consult a qualified guitar technician familiar with extended-range instruments.
Nothing in The Vault is for sale. These records exist so the instruments stay documented after the manufacturer moves on — and the most useful part of that record is what owners add to it.
The catalog shot showed one finish, under one light, a long time ago. Yours has been played. Photos from owners are what the next person finds when they are trying to identify a part, match a finish, or work out whether the one they just bought is really what the seller said it was.
Specs only go so far. What actually fits, what breaks first, what the factory got right and what everyone ends up changing — that lives with the people who own them, not in a datasheet. Post what you know and it stays on this page for whoever comes looking next.
