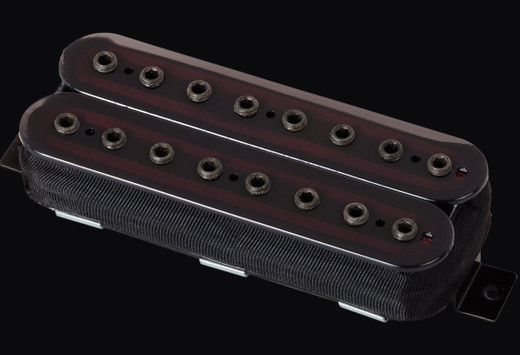

The Schecter 6274 Apocalypse-VIII is a neck pickup built for eight-string guitars. It uses a tri-field magnet arrangement: Alnico V direct-coupled construction combined with eight flanking Ceramic 8 magnets. The result is a neck position that holds together under heavy gain without going soft in the midrange. Output measures 12k ohms. Wiring is a 4-conductor harness with a split-coil design, so coil-splitting is wired in from the factory. The baseplate is black industrial-coated nickel/silver. Pole pieces are 16 high carbon steel socket-set screws, individually adjustable.

Two things decide whether this pickup fits your guitar: pole spacing and string count. This is an eight-string neck pickup with 71mm universal spacing. A six- or seven-string pickup will not cover the outer strings of an eight-string instrument, and this pickup will not sit correctly in a six- or seven-string route. Within eight-string guitars, spacing still varies between neck and bridge positions — a bridge-spaced pickup in a neck route puts the outer pole pieces off the strings. Confirm your route dimensions before ordering. Also check your mounting style: direct-mount bodies and ring-mount bodies require different hardware, and the wrong one means drilling or shimming.

The black industrial-coated baseplate and adjustable pole pieces mean you can dial in string balance after installation rather than relying on factory height alone. If a previous pickup left the outer strings weak, work the pole screws before assuming the pickup is wrong for the guitar.

Not sure this is the right part? Send us the make, model, and year of your guitar and we will check it against what we have on the shelf.
