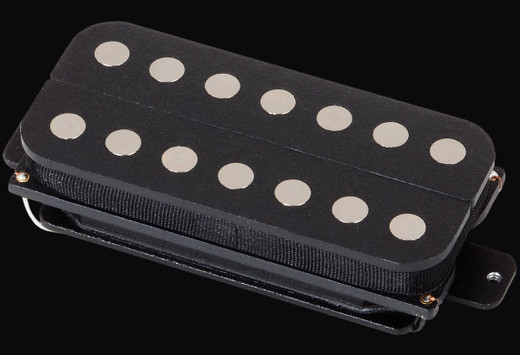

The Schecter 6086 SuperCharger Mach-7 is a seven-string neck pickup built around a split-coil, four-conductor design. The split coil gives you a humbucker in full mode and the option to tap to a single coil via the four-conductor harness — useful if your switching system supports it. Output is 12.0k ohms. The central magnet is a proprietary high-mass ceramic-barium impregnated unit, and the fourteen pole pieces are .25" nickel-plated carbon steel, which gives the pole pieces more surface area than a standard-diameter design and helps with string-to-string balance across a seven-string spread.

Two things decide whether this pickup fits your guitar. First, string count: this is a seven-string pickup. It will not cover the string spread on a six-string guitar, and it will not reach the eighth string on an eight-string. Second, spacing: this pickup is wound to 60mm universal spacing, which is the neck position dimension on most seven-string guitars. Using a neck-spaced pickup in a bridge route leaves the outer strings off-axis with the pole pieces. Confirm the spacing of your existing route before ordering. Also check your mounting hardware — direct-mount bodies and pickguard or ring-mount bodies require different baseplate arrangements, and what is in the guitar now is your reference.

The baseplate is engraved powder-coated aircraft aluminum. If your current pickup is failing at the baseplate — cracking, corroding, or losing a mounting tab — that is worth checking before you seat a replacement, because the route and pickup height will both be affected.

Not sure this is the right part for your guitar? Send us the make, model and year and we will tell you what fits.
