Product images are provided for reference and may not represent the exact model, configuration, or included components.

At A Glance

Model Name
Stiletto Studio-4 FF
Item Number
2793
Country of Origin
South Korea
Guitar Color Shown
Honey Satin (HSN)
Tuners
Schecter
Fretboard
Rosewood
Neck Material
Maple/Walnut Multi-ply
Inlays
Offset Dots
Scale
34"-35" (863mm-889mm)
Neck Shape
Thin 'C'
Thickness
@ 1st Fret- .787" (20mm)/ @ 12th Fret- .866" (22mm)
Frets
24 X-Jumbo
Fretboard Radius
16" (406mm)
Nut
Graph Tech XL Black Tusq
Nut Width
1.496" (38mm)
Truss Rod
2-Way Adjustable Rod w/ 5/32" (4mm) Allen Nut
Guitar Colors
Honey Satin (HSN)
Hardware Color
Satin Gold
Top Contour
Flat Top
Dexterity
Right Handed
Construction
Neck-Thru w/Ultra Access
Body Material
Mahogany
Top Material
Bubinga
Bridge
S-Tek
Controls
Master Volume/Blend/3-Band EMG Active E/Q
Bridge Pickup
EMG 35HZ
Neck Pickup
EMG 35HZ
Battery Compartment
18-volt w/Screw Plate
Knobs
Metal Knurled w/ Set Screw
Strings
Ernie Ball 4 String Super Long #2849 (.045-.105)
Case
SGR-5SB "Case Sold Separately"
Description

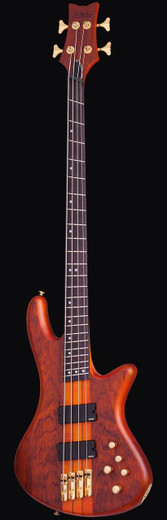

Schecter built the Stiletto Studio-4 FF as a neck-through four-string bass positioned within the Stiletto Studio series, manufactured in South Korea. The instrument was designed around an extended-range fanned-fret (FF) configuration, giving each string its own optimised scale length across a 34"–35" range, and was offered in a Honey Satin finish with satin gold hardware.

Construction centres on a mahogany body with a bubinga top and a multi-ply maple/walnut neck running through the body with Ultra Access. The 24-fret rosewood fretboard carries offset dot inlays, a 16" radius, and X-Jumbo frets. The nut is a Graph Tech XL Black Tusq at 1.496" (38mm) wide, and the neck profile is a Thin 'C' measuring .787" (20mm) at the first fret and .866" (22mm) at the twelfth. A two-way adjustable truss rod with a 5/32" (4mm) Allen nut governs relief. Electronics are an active system: a pair of EMG 35HZ pickups fed through a three-band EMG active EQ, controlled by master volume, blend, and EQ knobs, all running on an 18-volt supply accessed via a screw-plate battery compartment. The S-Tek bridge and Schecter tuners complete the hardware. Strings shipped as Ernie Ball 4-String Super Long #2849 (.045–.105).

Owners tracing replacement parts — particularly Graph Tech XL Black Tusq nuts, EMG 35-series pickups, or S-Tek bridge components — or requiring truss rod adjustments should consult a qualified bass technician or luthier familiar with neck-through, fanned-fret instruments.
