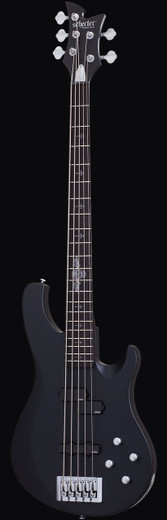

Schecter built the Johnny Christ-5 as a signature bass for Avenged Sevenfold's Johnny Christ, positioning it in the brand's Artist Series as a five-string instrument constructed on a bolt-on neck joint with an ash body and a three-piece maple neck. The model carried the extended 35-inch scale length and was finished in Satin Black.
The ebony fretboard runs 21 narrow extra-jumbo frets at a 12-inch radius, with a 1.771-inch nut width at the Graph Tech XL Black Tusq nut — dimensions that reflect the demands of the low-B string on a 35-inch scale bass. Inlays are silver bone crosses with a Deathbat at the 12th fret. Electronics consist of an EMG P5 at the neck and an EMG LJ at the bridge, routed through a master volume, blend control, and two-band EMG active EQ, powered by a 9-volt clip-in battery compartment. Hardware throughout is satin chrome, including Grover tuners and the Schecter Custom Bass bridge, which accepts either string-through-body or top-load stringing. The neck profile is a C-shape measuring .866 inches at the first fret and .925 inches at the twelfth. The truss rod is two-way adjustable via a 5/32-inch Allen nut.
Owners sourcing replacement parts should note that the bridge's dual stringing options, the Graph Tech XL Black Tusq nut dimensions, and the EMG pickup routing are relevant starting points for compatibility research; a qualified bass technician can advise on correct fit for strings, nut replacements, and electronics.
Nothing in The Vault is for sale. These records exist so the instruments stay documented after the manufacturer moves on — and the most useful part of that record is what owners add to it.
The catalog shot showed one finish, under one light, a long time ago. Yours has been played. Photos from owners are what the next person finds when they are trying to identify a part, match a finish, or work out whether the one they just bought is really what the seller said it was.
Specs only go so far. What actually fits, what breaks first, what the factory got right and what everyone ends up changing — that lives with the people who own them, not in a datasheet. Post what you know and it stays on this page for whoever comes looking next.
