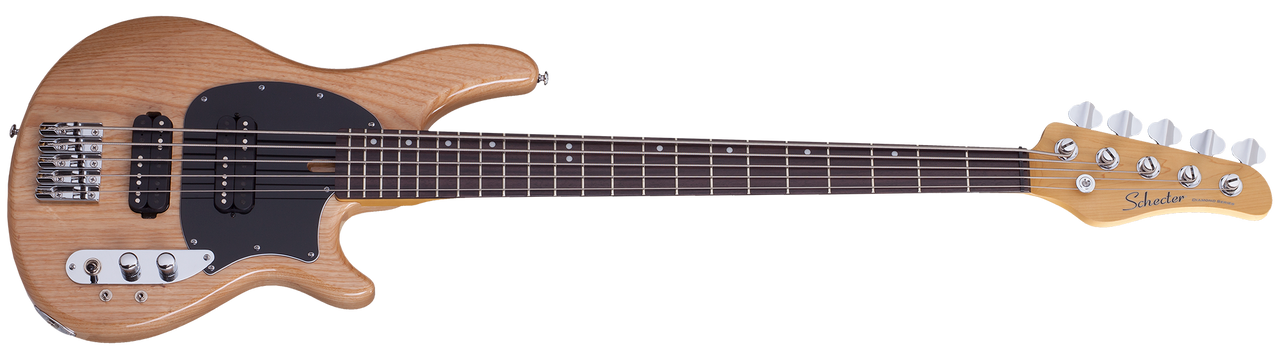

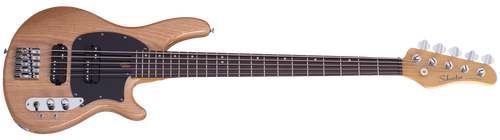

Schecter positioned the CV-5 as a five-string bass built around a classic J-style pickup configuration, sitting within the company's CV series. The instrument was manufactured in Indonesia and configured for right-handed players, with a 35-inch scale length and a six-bolt neck joint attaching a maple neck to an ash body.
The maple neck incorporates carbon fiber reinforcement rods and carries a rosewood fretboard with a 10-inch radius, offset dot inlays, and 22 narrow X-Jumbo frets. The Thin 'C' profile measures .787 inches at the first fret and .905 inches at the twelfth. Nut duties are handled by a Graph Tech XL Ivory Tusq unit at 1.771 inches wide, feeding Schecter Light-Weight tuners. Both pickup positions carry Schecter Diamond J-Bucker pickups, wired through a volume control, a tone control, a 3-way pickup selector switch, and individual 3-way series-split-parallel switches per pickup — allowing each pickup to be run in series, split, or parallel independently. The S-Tek bridge, chrome hardware, and metal knurled knobs with set screws complete the hardware complement. The instrument shipped strung with Ernie Ball 5-String Super Long .045–.130 gauge strings.
Owners sourcing replacement parts — including the Graph Tech XL Tusq nut, J-style pickup covers, or S-Tek bridge components — or requiring truss rod adjustments via the heel-access 5/32-inch Allen nut should consult a qualified bass technician for guidance on compatible substitutes.
Nothing in The Vault is for sale. These records exist so the instruments stay documented after the manufacturer moves on — and the most useful part of that record is what owners add to it.
The catalog shot showed one finish, under one light, a long time ago. Yours has been played. Photos from owners are what the next person finds when they are trying to identify a part, match a finish, or work out whether the one they just bought is really what the seller said it was.
Specs only go so far. What actually fits, what breaks first, what the factory got right and what everyone ends up changing — that lives with the people who own them, not in a datasheet. Post what you know and it stays on this page for whoever comes looking next.
