Schecter 2495 CV-5 Guitar, Ivory

Name: Schecter 2495 CV-5 Guitar, Ivory
Brand: Schecter
SKU: 2495

THE VAULT · ARCHIVED — NOT FOR SALE

Talk to Blake

30 years of shred • Floyd Rose setup master • U.S.-based

Shop Lead • Real player, real answers

Product images are provided for reference and may not represent the exact model, configuration, or included components.

At A Glance

Model Name: CV-5
Item Number: 2495
Country of Origin: Indonesia
Guitar Color Shown: Ivory (IVY)
Tuners: Schecter Light-Weight
Fretboard: Maple
Neck Material: Maple w/ Carbon Fiber Reinforcement Rods
Inlays: Offset Dots
Scale: 35" (889mm)
Neck Shape: Thin 'C'
Thickness: @ 1st Fret- .787" (20mm)/ @ 12th Fret- .905" (23mm)
Frets: 22 Narrow X-Jumbo
Fretboard Radius: 10" (254mm)
Nut: Graph Tech XL Ivory Tusq
Nut Width: 1.771" (45mm)
Truss Rod: 2-Way Adjustable Rod w/ Heel Access 5/32" (4mm) Allen Nut
Guitar Colors: Ivory (IVY)
Hardware Color: Chrome
Top Contour: Flat Top
Dexterity: Right Handed
Construction: 6 Bolt-on
Body Material: Ash
Bridge: S-Tek
Controls: Volume/Tone/3-Way Switch/3-Way Series-Split-Parallel Pickup Switches
Bridge Pickup: Schecter Diamond J-Bucker
Neck Pickup: Schecter Diamond J-Bucker
Knobs: Metal Knurled w/ Set Screw
Strings: Ernie Ball 5 String Super Long #2850 (.045-.130)
Case: N/A

Description
Expert Analysis
Additional info
Product Video
Q&A

Description

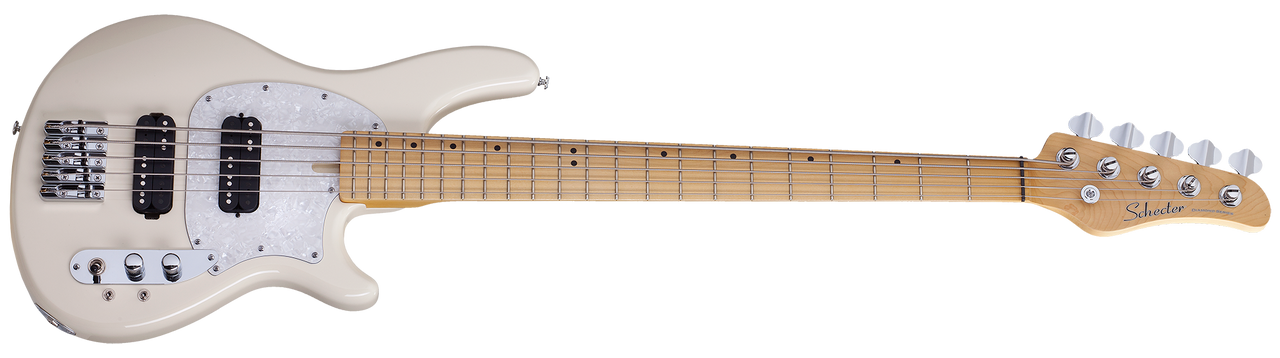

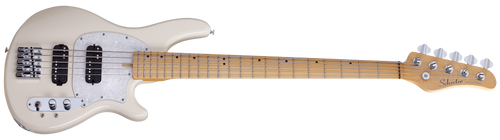

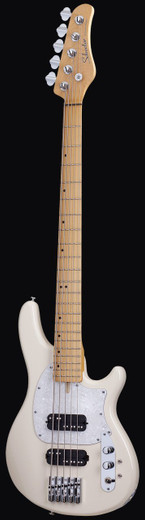

Schecter built the CV-5 as a five-string electric bass positioned within its Classic Vibe series. The instrument was constructed with a bolt-on neck joint secured by six bolts, pairing an ash body with a maple neck reinforced by carbon fiber rods and a maple fretboard.

The CV-5 carried a 35-inch scale length suited to five-string tension, with a Thin 'C' neck profile measuring .787 inches at the first fret and .905 inches at the twelfth. The fretboard featured a 10-inch radius, 22 narrow extra-jumbo frets, and offset dot inlays. Nut duties were handled by a Graph Tech XL Ivory Tusq unit at 1.771 inches wide. Both pickup positions received Schecter Diamond J-Bucker humcancelling pickups, with the control layout offering a volume, a tone, a 3-way selector switch, and individual 3-way series-split-parallel switches for each pickup — providing a wide range of tonal configurations from a single instrument. The S-Tek bridge, chrome hardware, Schecter lightweight tuners, and metal knurled knobs with set screws completed the specification. The instrument shipped strung with Ernie Ball 5 String Super Long strings.

Owners sourcing replacement parts — particularly the Graph Tech Tusq nut, S-Tek bridge components, or compatible strings — should verify dimensions against the specifications above and consult a qualified bass technician for setup and nut fitting work.
