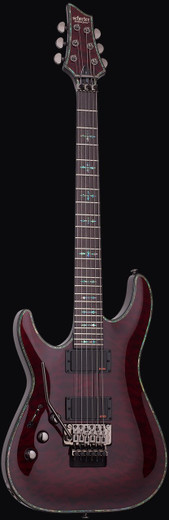

Schecter positioned the Hellraiser C-1 FR LH as a high-output, left-handed variant within its Hellraiser series, built around a mahogany body with a quilted maple top and a set-neck construction featuring Ultra Access. The guitar was manufactured in South Korea and carried a Black Cherry finish.
The three-piece mahogany neck is carved to a Thin 'C' profile — measuring .787" (20mm) at the first fret and .866" (22mm) at the twelfth — and terminates at a 14" (355mm) radius rosewood fretboard fitted with 24 X-Jumbo frets and abalone Gothic Cross inlays. The Floyd Rose 1000 Series bridge with Floyd Rose locking nut governs pitch stability across the 25.5" (648mm) scale. Electronics consist of an EMG 81TW at the bridge and an EMG 89R at the neck, each routed through a push-pull volume pot that engages the pickups' coil-split function; a single tone control and a 3-way switch complete the circuit. Hardware throughout is finished in black chrome, including the Grover tuners and metal knurled knobs. Abalone binding with black/white/black multi-ply trim runs the body perimeter. Power is supplied by a 9-volt clip-in battery compartment. The guitar shipped strung with Ernie Ball Regular Slinky .010–.046.
Owners sourcing replacement parts should note that the Floyd Rose 1000 Series bridge accepts standard Floyd Rose-spec saddles and springs, and the locking nut width of 1.625" (41.3mm) should be matched precisely when seeking a substitute. The 2-way adjustable truss rod is accessed with a 5/32" (4mm) Allen key. For setup, intonation, or parts-sourcing questions, consult a qualified guitar technician familiar with Floyd Rose-equipped instruments.
Nothing in The Vault is for sale. These records exist so the instruments stay documented after the manufacturer moves on — and the most useful part of that record is what owners add to it.
The catalog shot showed one finish, under one light, a long time ago. Yours has been played. Photos from owners are what the next person finds when they are trying to identify a part, match a finish, or work out whether the one they just bought is really what the seller said it was.
Specs only go so far. What actually fits, what breaks first, what the factory got right and what everyone ends up changing — that lives with the people who own them, not in a datasheet. Post what you know and it stays on this page for whoever comes looking next.
