Product images are provided for reference and may not represent the exact model, configuration, or included components.

At A Glance

Model Name
Reaper-6 FR S
Item Number
1506
Country of Origin
Indonesia

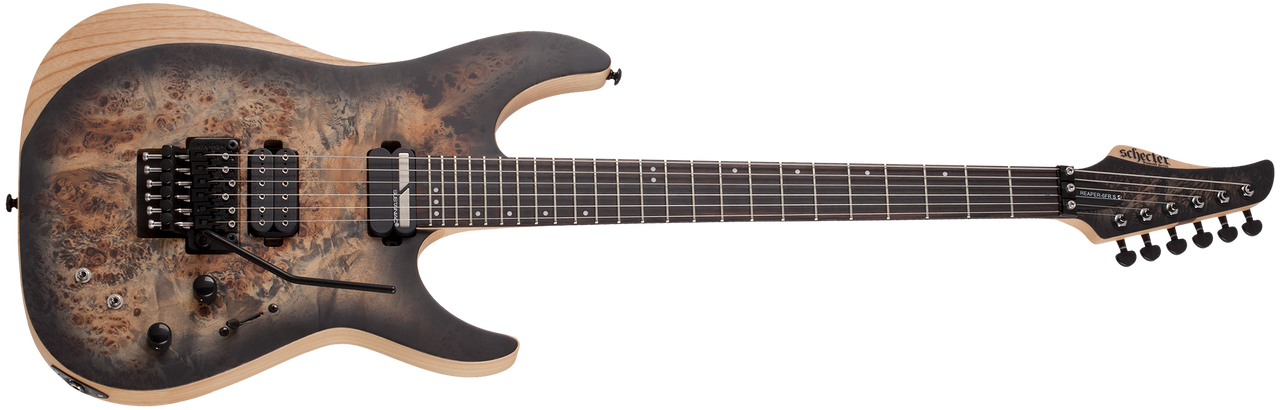

Guitar Color Shown
Satin Charcoal Burst (SCB)
Tuners
Schecter
Fretboard
Ebony
Neck Material
Maple/Walnut Multi-ply w/ Carbon Fiber Reinforcement Rods
Inlays
Pearloid Offset/Reverse Dots
Scale
25.5" (648mm)
Neck Shape
Ultra Thin 'C'
Thickness
@ 1st Fret- .748" (19mm)/ @ 12th Fret- .787" (20mm)
Frets
24 X-Jumbo
Fretboard Radius
14" (355mm)
Nut
Floyd Rose 1500 Series
Nut Width
1.625" (41.3mm)
Truss Rod
2-Way Adjustable Rod w/ 5/32" (4mm) Allen Nut
Guitar Colors
Satin Charcoal Burst (SCB)
Hardware Color
Black & Chrome
Top Contour
Flat Top
Dexterity
Right Handed
Construction
Set-Neck w/Ultra Access
Body Material
Swamp Ash
Top Material
Burl
Bridge
Floyd Rose 1500 Series
Controls
Volume/Tone/3-Way (Pickup) Switch/2-Way On-Off Sustainiac Switch/3-Way Sustainiac Mode Switch (Fundamental-Mix-Harmonic)
Bridge Pickup
Schecter Diamond Decimator
Neck Pickup
Sustainiac®
Battery Compartment
9-volt Clip-in Battery Compartment
Knobs
Metal Knurled w/ Set Screw
Strings
Ernie Ball Regular Slinky #2221 (.010-.046)
Case
SGR-1C "Case Sold Separately"
Description

Schecter positioned the Reaper-6 FR S within its Reaper series as a high-output, extended-performance electric guitar built around a Sustainiac-driven neck pickup system and a Floyd Rose 1500 Series floating tremolo. It was manufactured in Indonesia and offered in a right-handed configuration only, with a Satin Charcoal Burst finish over a Burl top.

The guitar was constructed using a set-neck joint with Ultra Access heel shaping, joining a Maple/Walnut multi-ply neck — reinforced with carbon fiber rods — to a Swamp Ash body capped with a Burl top finished flat. The Ebony fretboard carries 24 X-Jumbo frets at a 14" radius, with Pearloid Offset/Reverse Dot inlays and a 25.5" (648mm) scale length. The Ultra Thin 'C' neck profile measures .748" (19mm) at the first fret and .787" (20mm) at the twelfth. The Floyd Rose 1500 Series bridge and matching locking nut (1.625" / 41.3mm width) complete the tremolo system, with a 2-way adjustable truss rod accessible via a 5/32" (4mm) Allen nut. The Schecter Diamond Decimator occupies the bridge position, while the neck position houses a Sustainiac® driver with a dedicated 2-way on/off switch and a 3-way mode switch (Fundamental, Mix, Harmonic) — powered by a 9-volt clip-in battery. Hardware throughout is finished in Black and Chrome, with metal knurled knobs secured by set screws. Schecter-branded tuners and an Ernie Ball Regular Slinky (.010–.046) string set complete the specification. The SGR-1C case is sold separately.

Owners requiring setup work, tremolo calibration, or Sustainiac system servicing should consult a qualified guitar technician familiar with Floyd Rose-equipped instruments.
