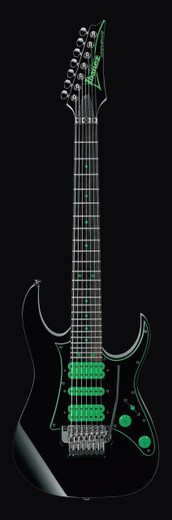

Ibanez UV70PBK UV Signature Series Electric Guitar, Black
Ibanez UV70PBK UV Signature Series Electric Guitar, Black
Product images are provided for reference and may not represent the exact model, configuration, or included components.

At A Glance

Neck Type
Wizard-7 / 5pc Maple/Walnut neck w/KTS TITANIUM rods
Top/Back/Body
American Basswood body
Fretboard
Bound Panga Panga fretboard / Green dot inlay
Fret
Jumbo frets / Premium fret edge treatment
Number of Frets
24
Bridge
Edge-Zero II-7 tremolo bridge
String Space
10.8mm
Neck Pickup
DiMarzio Blaze (H) neck pickup (Passive/Ceramic)
Middle Pickup
DiMarzio Blaze (S) middle pickup (Passive/Ceramic)
Bridge Pickup
DiMarzio Blaze (H) bridge pickup (Passive/Ceramic)
Factory Tuning
1E,2B,3G,4D,5A,6E,7B
Strings
D'Addario EXL120-7
String Gauge
.009/.011/.016/.024/.032/.042/.054
Hardware Color
Cosmo black
Scale
648mm/25.5"
A : Width
48mm at NUT
B : Width
68mm at 24F
C : Thickness
19mm at 1F
D : Thickness
21mm at 12F
Radius
400mmR
Finish
Black
Description

Ibanez produced the UV70PBK as part of the UV Signature Series, a seven-string electric guitar line built around the extended-range requirements of the format. Within the UV range, the UV70P occupied the position of a production-model seven-string carrying the series' core construction principles: a multi-piece through-neck architecture, an HSH pickup arrangement voiced for the format, and a double-locking tremolo system scaled to seven strings.

The guitar was built around an American Basswood body and a five-piece Maple/Walnut Wizard-7 neck reinforced with KTS TITANIUM rods. The bound Panga Panga fretboard carries 24 jumbo frets with Premium fret edge treatment and green dot inlays, running a 400mmR radius over a 648mm/25.5" scale. Nut width is 48mm, widening to 68mm at the 24th fret, with neck thickness measuring 19mm at the first fret and 21mm at the twelfth. The Edge-Zero II-7 tremolo bridge is spaced at 10.8mm string spacing. Pickups are a DiMarzio Blaze set — passive, ceramic — in an H/S/H configuration: Blaze (H) at the neck, Blaze (S) at the middle, and Blaze (H) at the bridge. Hardware throughout is finished in Cosmo black. The guitar left the factory strung with D'Addario EXL120-7 strings (.009/.011/.016/.024/.032/.042/.054) in standard seven-string tuning (low to high: B, E, A, D, G, B, E).

Owners requiring setup work, tremolo calibration, or assistance sourcing compatible seven-string replacement parts — including Edge-Zero II-7 components or DiMarzio Blaze-series pickups — should consult a qualified guitar technician familiar with extended-range instruments and double-locking tremolo systems.

Expert Analysis
Specifications
Neck Type: Wizard-7 / 5pc Maple/Walnut neck w/KTS TITANIUM rods
Top/Back/Body: American Basswood body
Fretboard: Bound Panga Panga fretboard / Green dot inlay
Fret: Jumbo frets / Premium fret edge treatment
Number of Frets: 24
Bridge: Edge-Zero II-7 tremolo bridge
String Space: 10.8mm
Neck Pickup: DiMarzio Blaze (H) neck pickup (Passive/Ceramic)
Middle Pickup: DiMarzio Blaze (S) middle pickup (Passive/Ceramic)
Bridge Pickup: DiMarzio Blaze (H) bridge pickup (Passive/Ceramic)
Factory Tuning: 1E,2B,3G,4D,5A,6E,7B
Strings: D'Addario EXL120-7
String Gauge: .009/.011/.016/.024/.032/.042/.054
Hardware Color: Cosmo black
Scale: 648mm/25.5"
A : Width: 48mm at NUT
B : Width: 68mm at 24F
C : Thickness: 19mm at 1F
D : Thickness: 21mm at 12F
Radius: 400mmR
Finish: Black
