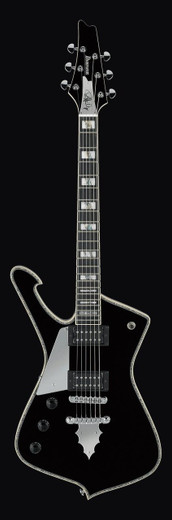

Ibanez PS120LBK PS Signature Series Electric Guitar, Black
Ibanez PS120LBK PS Signature Series Electric Guitar, Black
Archive images of this model, kept as part of the record. Finishes, hardware and appointments changed across production runs, so yours may well differ in the details — and if it does, that difference is worth documenting. Add your photos to this record ›

At A Glance

Neck Type
PS / 3pc Okoume neck / Set-in neck (smooth heel)
Top/Back/Body
Maple top / Okoume body
Fretboard
Bound Ebony fretboard / Acrylic & Abalone block inlay
Fret
Medium frets
Number of Frets
22
Bridge
Gibraltar Performer bridge
String Space
10.5mm
Tailpiece
Quik Change III tailpiece
Neck Pickup
Seymour Duncan '59 model (H) neck pickup (Passive/Alnico)
Bridge Pickup
Seymour Duncan Custom 5 (H) bridge pickup (Passive/Alnico)
Factory Tuning
1E,2B,3G,4D,5A,6E
Strings
D'Addario EXL110
String Gauge
.010/.013/.017/.026/.036/.046
Nut
Bone nut
Hardware Color
Chrome
Scale
628mm/24.7"
A : Width
43mm at NUT
B : Width
57mm at 22F
C : Thickness
20mm at 1F
D : Thickness
23.5mm at 12F
Radius
305mmR
Color
Black
Description

Ibanez produced the PS120LBK as part of its PS Signature Series, positioning it as a signature-platform electric guitar finished in Black. The model carried a set-in neck construction with a smooth heel joint, placing it in the upper tier of Ibanez's bolt-on-alternative lineup where neck access and sustain were priorities.

The body combined an Okoume core with a Maple top, and the three-piece Okoume PS-profile neck joined a bound Ebony fretboard dressed with Acrylic and Abalone block inlays across 22 medium frets. A Bone nut at 43mm width fed string tension down a 628mm (24.7") scale to a Gibraltar Performer bridge and Quik Change III tailpiece, both finished in Chrome hardware. The 10.5mm string spacing and a fretboard radius of 305mmR defined the playing geometry, with neck thickness running 20mm at the first fret and 23.5mm at the twelfth. Electronics consisted of a Seymour Duncan '59 Model humbucker at the neck and a Seymour Duncan Custom 5 humbucker at the bridge, both passive Alnico designs. The guitar left the factory strung with D'Addario EXL110s (.010–.046) in standard tuning.

Owners requiring replacement parts — particularly the Gibraltar Performer bridge, Quik Change III tailpiece, or Seymour Duncan pickups — should confirm current component dimensions against their specific unit before ordering. For setup, intonation, or fretwork, consultation with a qualified guitar technician is recommended.

Expert Analysis
Specifications
Neck Type: PS / 3pc Okoume neck / Set-in neck (smooth heel)
Top/Back/Body: Maple top / Okoume body
Fretboard: Bound Ebony fretboard / Acrylic & Abalone block inlay
Fret: Medium frets
Number of Frets: 22
Bridge: Gibraltar Performer bridge
String Space: 10.5mm
Tailpiece: Quik Change III tailpiece
Neck Pickup: Seymour Duncan '59 model (H) neck pickup (Passive/Alnico)
Bridge Pickup: Seymour Duncan Custom 5 (H) bridge pickup (Passive/Alnico)
Factory Tuning: 1E,2B,3G,4D,5A,6E
Strings: D'Addario EXL110
String Gauge: .010/.013/.017/.026/.036/.046
Nut: Bone nut
Hardware Color: Chrome
Scale: 628mm/24.7"
A : Width: 43mm at NUT
B : Width: 57mm at 22F
C : Thickness: 20mm at 1F
D : Thickness: 23.5mm at 12F
Radius: 305mmR
Color: Black
