At A Glance
- Neck Type
- Wizard II-7 / 3pc Maple neck
- Top/Back/Body
- Meranti body
- Fretboard
- Jatoba fretboard / White dot inlay
- Fret
- Jumbo frets
- Number of Frets
- 24
- Bridge
- F107 bridge
- String Space
- 10.5mm
- Neck Pickup
- Quantum-7 (H) neck pickup (Passive/Ceramic)
- Bridge Pickup
- Quantum-7 (H) bridge pickup (Passive/Ceramic)
- Factory Tuning
- 1E,2B,3G,4D,5A,6E,7B
- Strings
- D'Addario EXL110-7
- String Gauge
- .010/.013/.017/.026/.036/.046/.059
- Hardware Color
- Black
- Scale
- 648mm/25.5"
- A : Width
- 48mm at NUT
- B : Width
- 68mm at 24F
- C : Thickness
- 19mm at 1F
- D : Thickness
- 21mm at 12F
- Radius
- 400mmR
- Finish
- Pearl Black Fade Metallic

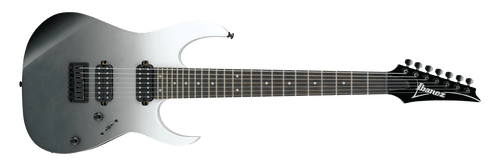

Ibanez built the RG7421PFM as part of its long-running RG Series, positioning it as a seven-string solid-body electric aimed at players who required extended low-end range within the RG platform. The model carried the Pearl Black Fade Metallic finish and sat in the production line as an entry point into Ibanez's seven-string RG offering, equipped with passive electronics throughout.
The guitar was constructed with a Meranti body and a three-piece Maple neck of the Wizard II-7 profile — a neck geometry Ibanez developed for low action and fast playing across the extended string count. The Jatoba fretboard carries white dot inlays and 24 jumbo frets over a 400mm radius, with a nut width of 48mm widening to 68mm at the 24th fret; neck thickness measures 19mm at the first fret and 21mm at the twelfth. The 648mm (25.5-inch) scale runs through an F107 bridge set at 10.5mm string spacing. Both the neck and bridge positions are loaded with Quantum-7 passive ceramic humbucker pickups. Hardware throughout is finished in black. The guitar left the factory strung with D'Addario EXL110-7 strings (.010/.013/.017/.026/.036/.046/.059) in standard seven-string tuning (low B to high E).
Owners sourcing replacement parts — including the F107 bridge saddles, Quantum-7 pickups, or seven-string-gauge nut blanks — should consult a qualified guitar technician or luthier, particularly when matching the 10.5mm string spacing and 48mm nut width to aftermarket components.
