At A Glance
- Neck Type
- Wizard / 11pc Maple/Walnut/Purpleheart neck
- Top/Back/Body
- Poplar Burl (7mm) top / American Basswood body
- Fretboard
- Ebony fretboard / Mother of Pearl dot inlay
- Fret
- Jescar EVO Gold frets / Premium fret edge treatment
- Number of Frets
- 24
- Bridge
- Mono-rail bridge
- String Space
- 10.8mm
- Neck Pickup
- Bare Knuckle Aftermath (H) neck pickup (Passive/Alnico)
- Bridge Pickup
- Bare Knuckle Aftermath (H) bridge pickup (Passive/Ceramic)
- Factory Tuning
- 1E,2B,3G,4D,5A,6E
- Strings
- D'Addario EXL110
- String Gauge
- .010/.013/.017/.026/.036/.046
- Hardware Color
- Gold
- Scale
- 648mm/25.5"
- A : Width
- 43mm at NUT
- B : Width
- 58mm at 24F
- C : Thickness
- 18mm at 1F
- D : Thickness
- 20mm at 12F
- Radius
- 400mmR
- Finish
- Tropical Seafloor

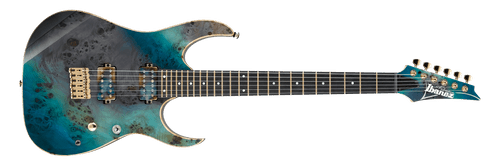

Ibanez built the RG6PPBFXTSR as part of the RG Premium Series, positioning it above the standard RG line with elevated hardware and tonewoods. The guitar carried the Tropical Seafloor finish designation and was offered as a six-string instrument.
The neck is a 11-piece Wizard profile construction laminating Maple, Walnut, and Purpleheart, joining an Ebony fretboard with Mother of Pearl dot inlays and 24 Jescar EVO Gold frets finished with Premium fret edge treatment. The nut width measures 43mm, widening to 58mm at the 24th fret, with a 400mm radius and a 648mm (25.5") scale length. Neck thickness runs 18mm at the first fret and 20mm at the twelfth. The body pairs a 7mm Poplar Burl top over an American Basswood core. A Mono-rail bridge with 10.8mm string spacing handles fixed intonation, while Gold hardware runs throughout. Bare Knuckle Aftermath humbuckers occupy both positions — an Alnico-loaded unit at the neck and a Ceramic-loaded unit at the bridge, both passive. The guitar left the factory strung with D'Addario EXL110s (.010/.013/.017/.026/.036/.046) in standard E tuning.
Owners sourcing replacement parts should note that the Mono-rail bridge, Jescar EVO Gold fret wire, and Bare Knuckle Aftermath pickups are each sourced from their respective original manufacturers. A qualified guitar technician or luthier can advise on compatible substitutes where original components are no longer available.
