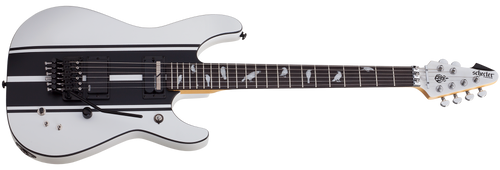

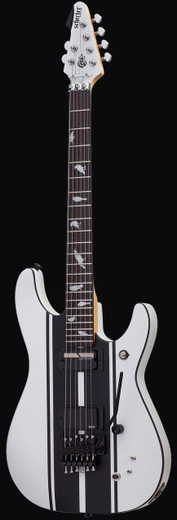

Schecter built the DJ Ashba as a signature model for the guitarist of the same name, positioning it in the electric guitar line as a high-output, Floyd Rose-equipped instrument. It was constructed with a bolt-on neck joint and a flat-top alder body, finished in the satin white graphic shown in this record.
The maple neck carried an ebony fretboard with 22 X-Jumbo frets, a 14" (355mm) radius, and a 25.5" (648mm) scale length. The Thin 'C' profile measured .787" (20mm) at the first fret and .866" (22mm) at the twelfth. A Floyd Rose 1500 Series bridge and matching locking nut provided double-locking tremolo action, with Grover Rotomatic 18:1 tuners at the headstock. The neck position carried a Sustainiac pickup in place of a conventional humbucker; a dedicated 2-way on/off switch and a 3-way mode switch (Fundamental, Mix, Harmonic) governed it, while the bridge position ran an EMG 81. The Sustainiac system drew power from a double 9-volt clip-in battery compartment. Black 1-ply binding, black hardware, Birds on a Wire inlays, and metal knurled knobs with set screws completed the specification.
Owners requiring setup work, Floyd Rose spring and intonation adjustments, or Sustainiac system servicing should consult a qualified guitar technician familiar with active pickup and sustainer installations.
Nothing in The Vault is for sale. These records exist so the instruments stay documented after the manufacturer moves on — and the most useful part of that record is what owners add to it.
The catalog shot showed one finish, under one light, a long time ago. Yours has been played. Photos from owners are what the next person finds when they are trying to identify a part, match a finish, or work out whether the one they just bought is really what the seller said it was.
Specs only go so far. What actually fits, what breaks first, what the factory got right and what everyone ends up changing — that lives with the people who own them, not in a datasheet. Post what you know and it stays on this page for whoever comes looking next.
