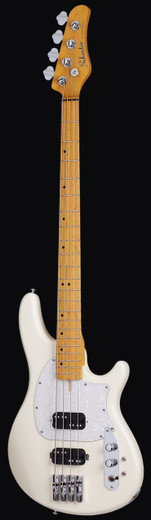

Schecter 2492 CV-4 Guitar, Ivory

Name: Schecter 2492 CV-4 Guitar, Ivory
Brand: Schecter
SKU: 2492

THE VAULT · ARCHIVED — NOT FOR SALE

Talk to Blake

30 years of shred • Floyd Rose setup master • U.S.-based

Shop Lead • Real player, real answers

Product images are provided for reference and may not represent the exact model, configuration, or included components.

At A Glance

Model Name: CV-4
Item Number: 2492
Country of Origin: Indonesia
Guitar Color Shown: Ivory (IVY)
Tuners: Schecter Light-Weight
Fretboard: Maple
Neck Material: Maple w/ Carbon Fiber Reinforcement Rods
Inlays: Offset Dots
Scale: 34" (863mm)
Neck Shape: Thin 'C'
Thickness: @ 1st Fret- .787" (20mm)/ @ 12th Fret- .905" (23mm)
Frets: 22 Narrow X-Jumbo
Fretboard Radius: 10" (254mm)
Nut: Graph Tech XL Ivory Tusq
Nut Width: 1.653" (42mm)
Truss Rod: 2-Way Adjustable Rod w/ Heel Access 5/32" (4mm) Allen Nut
Guitar Colors: Ivory (IVY)
Hardware Color: Chrome
Top Contour: Flat Top
Dexterity: Right Handed
Construction: 6 Bolt-on
Body Material: Ash
Bridge: S-Tek
Controls: Volume/Tone/3-Way Switch/3-Way Series-Split-Parallel Pickup Switches
Bridge Pickup: Schecter Diamond J-Bucker
Neck Pickup: Schecter Diamond J-Bucker
Knobs: Metal Knurled w/ Set Screw
Strings: Ernie Ball 4 String Super Long #2849 (.045-.105)
Case: SGR-6B "Case Sold Separately"

Description
Expert Analysis
Additional info
Product Video
Q&A

Description

Schecter positioned the CV-4 as a four-string bass in its Classic Vintage series, built on an ash body with a bolt-on maple neck reinforced by carbon fiber rods. The Indonesian-made instrument carried a 34-inch scale and was finished in Ivory with chrome hardware throughout.

The maple fretboard runs a 10-inch radius and carries 22 narrow extra-jumbo frets over a Thin 'C' profile neck — measuring .787 inches at the first fret and .905 inches at the twelfth. The nut is a Graph Tech XL Ivory Tusq unit at 1.653 inches wide, and the truss rod is a two-way adjustable design accessible at the heel via a 5/32-inch Allen key. Both the bridge and neck positions house Schecter Diamond J-Bucker pickups, wired to a control layout of volume, tone, a 3-way pickup selector, and individual 3-way series-split-parallel switches for each pickup. The bridge is an S-Tek unit; tuners are Schecter lightweight models. Metal knurled knobs with set screws complete the hardware complement. The instrument shipped strung with Ernie Ball 4-String Super Long sets (.045–.105).

Owners sourcing replacement parts — including the Graph Tech Tusq nut, S-Tek bridge saddles, or pickguard-compatible J-Bucker covers — should bring the relevant measurements to a qualified bass technician or luthier, as fit will depend on precise cavity and spacing dimensions.
