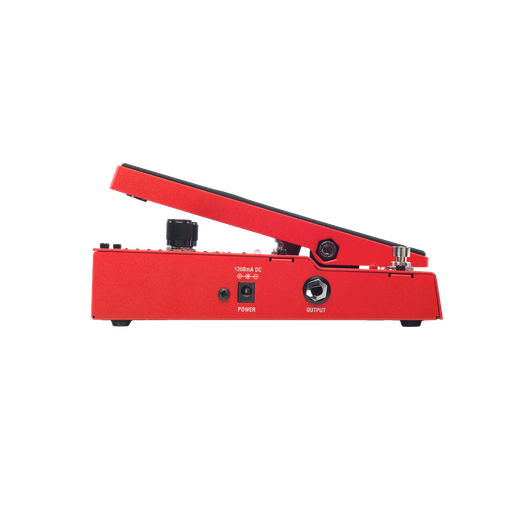

DigiTech positioned the Whammy DT (WHAMMYDT-U) as an expansion of the established Whammy line, combining the classic pitch shifting function of earlier Whammy pedals with drop tuning and raised tuning capabilities in a single unit. The addition of true bypass distinguished it from prior iterations in the family.
The pedal offered a pitch bend range of +2 to -3 octaves and a detune range of -4 to -30 cents. Drop tuning covered 1–7 semitones, an octave, and an octave-plus-dry voicing. Signal conversion ran at 24-bit D/A with a 44.1 kHz sample rate, and the frequency response spanned 20 Hz to 20 kHz. The instrument input accepted a 1/4" unbalanced TS signal at up to +5 dBu across a 1 MΩ input impedance, while the output delivered up to +10 dBu into a 1 kΩ output impedance via a 1/4" unbalanced TS jack. MIDI control was available through a 5-pin DIN input, and the 1/4" TRS footswitch input accommodated the optional FS3X footpedal. Power draw was rated at 2.6 watts, supplied by a 9 VDC external adapter. The unit measured 2.36" (H) × 8.2" (W) × 7.73" (D).
Owners requiring calibration, bypass modification, or internal servicing should consult a qualified guitar technician or electronics repair professional familiar with effects pedal circuitry.
