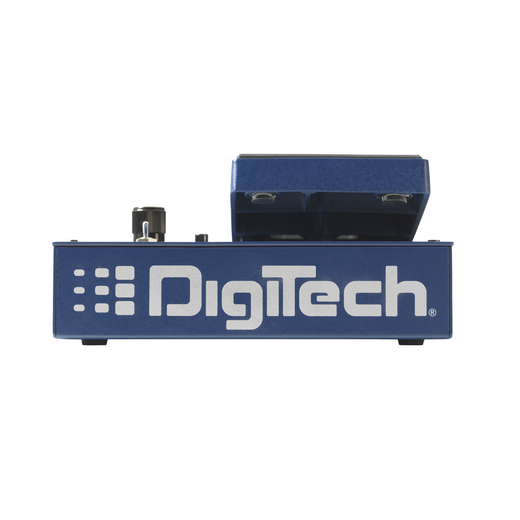

DigiTech positioned the Bass Whammy (BWHAMMY-U) as a pitch shifting effect pedal purpose-built for bass guitar. It carried forward the classic settings of the original Bass Whammy while incorporating updated pitch detection and polyphonic note tracking technology. The unit offered two distinct tracking modes — Classic and Chord — giving the owner the choice between the tracking artifacts characteristic of the original hardware or a smoother polyphonic pitch shift response.
The pedal runs on a 9V DC external adapter and draws fewer than 265 mA, making it compatible with standard pedalboard power supplies. Audio conversion runs at 24-bit depth with a 44.1 kHz sample rate, and the frequency response covers 20 Hz to 20 kHz. The instrument input accepts a 1/4" unbalanced TS connection at up to +5 dBu into 1 MΩ impedance; the output is likewise 1/4" unbalanced TS, rated to +10 dBu at 1 kΩ impedance. A 5-pin DIN MIDI input allows external control of the pedal. The unit measures 6.5" wide by 7.75" deep by 2.5" tall and employs true bypass switching. Signal-to-noise ratio is rated above 105 dB (A-weighted), with THD of 0.004% at 1 kHz.
For questions about integration, calibration, or any physical service needs, consult a qualified guitar or electronics technician familiar with effects pedals.
Nothing in The Vault is for sale. These records exist so the instruments stay documented after the manufacturer moves on — and the most useful part of that record is what owners add to it.
The catalog shot showed one finish, under one light, a long time ago. Yours has been played. Photos from owners are what the next person finds when they are trying to identify a part, match a finish, or work out whether the one they just bought is really what the seller said it was.
Specs only go so far. What actually fits, what breaks first, what the factory got right and what everyone ends up changing — that lives with the people who own them, not in a datasheet. Post what you know and it stays on this page for whoever comes looking next.
