At A Glance

Neck Type
Wizard II-7 / 11pc Maple/Walnut/Purpleheart neck
Top/Back/Body
Poplar Burl top / American Basswood body
Fretboard
Ebony fretboard / Mother of Pearl dot inlay
Fret
Jescar EVO Gold frets / Premium fret edge treatment
Number of Frets
24
Bridge
Mono-rail bridge
String Space
10.8mm
Neck Pickup
DiMarzio Fusion Edge 7 (H) neck pickup (Passive/Ceramic)
Bridge Pickup
DiMarzio Fusion Edge 7 (H) bridge pickup (Passive/Ceramic)
Factory Tuning
1E,2B,3G,4D,5A,6E,7B
Strings
D'Addario XL110-7
String Gauge
.010/.013/.017/.026/.036/.046/.059
Hardware Color
Cosmo black
Scale
648mm/25.5"
A : Width
48mm at NUT
B : Width
68mm at 24F
C : Thickness
19mm at 1F
D : Thickness
21mm at 12F
Radius
400mmR
Series
RG Premium
Finish
Caribbean Islet Flat
Description

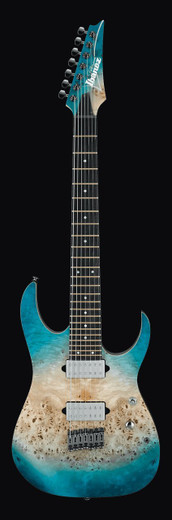

Ibanez positioned the RG1127PBFXCIF within the RG Premium Series as a seven-string electric guitar finished in Caribbean Islet Flat. It carried the Premium designation, placing it above the standard production RG line and targeting players who required extended range alongside the build refinements associated with that tier.

The guitar was built around an American Basswood body with a Poplar Burl top and a 11-piece Maple/Walnut/Purpleheart Wizard II-7 neck, a construction that combined the laminated neck blank's inherent rigidity with the tonal characteristics of three distinct wood species. The Ebony fretboard ran 24 frets with Mother of Pearl dot inlays, a 400mmR radius, and Premium fret edge treatment using Jescar EVO Gold frets. Nut width measured 48mm, widening to 68mm at the 24th fret, with neck thickness of 19mm at the first fret and 21mm at the twelfth. The 648mm/25.5-inch scale fed into individual Mono-rail bridges spaced at 10.8mm string spacing. DiMarzio Fusion Edge 7 passive ceramic humbuckers occupied both the neck and bridge positions. All hardware was finished in Cosmo black. The guitar left the factory strung with D'Addario XL110-7s in a standard seven-string tuning of B–E–A–D–G–B–E.

Owners sourcing replacement parts should note that the Mono-rail bridge, Jescar EVO Gold fret stock, and DiMarzio Fusion Edge 7 pickups are all independently available through their respective manufacturers; a qualified guitar technician can advise on correct fit and setup for this scale length and string spacing.
