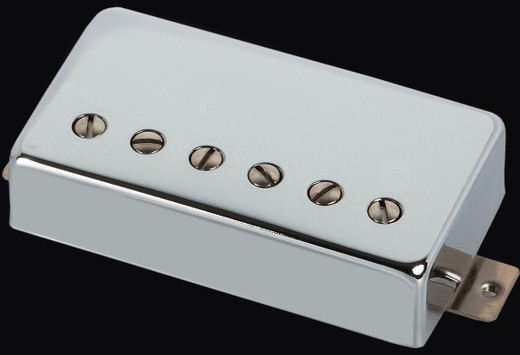

The Schecter 6203 Pasadena Plus is a six-string bridge-position humbucker. It runs a 4-conductor harness with a split-coil design, which means you can wire it for full humbucker, single-coil, or series/parallel operation without rewinding anything. Output measures 16.0k ohms. The magnet is Alnico V, direct-coupled to the pole pieces. The baseplate is solid nickel/silver. This pickup is made for the bridge route only — there is no neck version of this part.

Two things decide whether this fits your guitar: pole spacing and string count. This pickup is spaced at 49mm Traditional Spacing. Bridge routes on tremolo-equipped guitars are typically wider than neck routes, so confirm your existing bridge pickup's pole spacing before ordering — if the outer pole pieces don't line up with your outer strings, you will hear it immediately. This is a six-string pickup; it will not drop into a seven- or eight-string route. Also check your mounting hardware: direct-mount bodies and pickup-ring bodies need different screw configurations, and the wrong one will mean the pickup sits at the wrong height or won't seat at all.

Pole pieces are six nickel-plated carbon steel units at 0.1875" diameter, plus six #5 slot pan head Phillips nickel-plated carbon steel screws for the adjustable row. The split-coil design means the 4-conductor harness is doing real work here — if you only need a two-conductor wiring job, you will have conductors to tape off, but you are not losing anything by doing so.

If you are not certain this is the right pickup for your specific guitar, send us the make, model, and year and we will confirm it fits before you pull the trigger.
