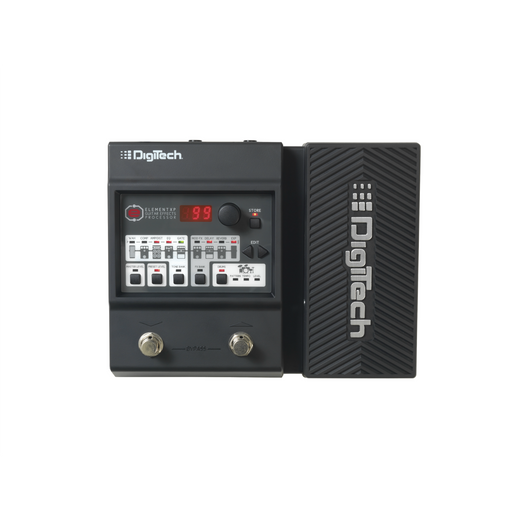

DigiTech produced the Element XP (ELMTXP-U) as a compact, pedalboard-style guitar multi-effects processor with an integrated expression pedal. It sat in the brand's entry-to-mid-range effects line, offering a broad palette of modelled pedals, amplifiers, and speaker cabinets in a single, battery-free unit aimed at players building and saving personal tones.
The unit ran on DigiTech's AudioDNA2™ DSP processor with 24-bit high-performance A/D/A conversion at a 44.1 kHz sampling frequency, delivering up to 9 simultaneous effects. Its preset architecture provided 100 factory presets alongside 100 user preset slots. The onboard drum machine offered 45 patterns with adjustable tempo. Signal connections comprised a 1/4" unbalanced guitar input (500 kΩ impedance), stereo 1/4" TRS left/right outputs (500 Ω per side, maximum +7.0 dBu), a 1/8" stereo headphone output (17.4 mW per channel at 50 Ω), and an auxiliary input for playing along with external sources. The processor included a built-in guitar tuner. An Amp/Mixer mode engaged internal speaker cabinet models for direct recording use. The unit was powered by a 9 VDC external adapter — included in the box — drawing 1.6 watts, and measured 6.25" × 8.0" × 2.25" at 1.2 lbs. The integrated expression pedal provided real-time control over assignable parameters during performance. The finish was black.
Owners seeking replacement power adapters should cross-reference the PS0913DC adapter series; for setup, signal-chain questions, or expression pedal calibration, a qualified guitar technician or electronics service professional is the appropriate resource.
Nothing in The Vault is for sale. These records exist so the instruments stay documented after the manufacturer moves on — and the most useful part of that record is what owners add to it.
The catalog shot showed one finish, under one light, a long time ago. Yours has been played. Photos from owners are what the next person finds when they are trying to identify a part, match a finish, or work out whether the one they just bought is really what the seller said it was.
Specs only go so far. What actually fits, what breaks first, what the factory got right and what everyone ends up changing — that lives with the people who own them, not in a datasheet. Post what you know and it stays on this page for whoever comes looking next.
