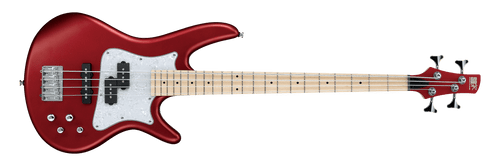

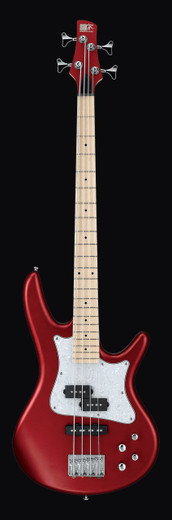

Ibanez built the SRMD200CAM as part of the SR Mezzo series, a line positioned around a medium 32-inch scale length — shorter than a standard long-scale bass but longer than a short-scale instrument. It sat in the entry-to-mid tier of the SR family, carrying the SR's characteristic slim neck profile into a more compact format intended for players who found a full 34-inch scale demanding.
The bass was constructed with a poplar body and a maple neck bearing a maple fretboard with black dot inlays, 22 medium frets, and a 305mm radius. Nut width measures 38mm, widening to 62mm at the 22nd fret; neck thickness runs 19.5mm at the first fret and 21.5mm at the 12th. The 38mm plastic nut feeds into a 32-inch / 812mm scale with 19mm string spacing at the B10 bridge. Electronics comprised a passive Dynamix P neck pickup and a passive Dynamix J bridge pickup, routed through Ibanez's own 2-band EQ. Hardware throughout is chrome. The instrument left the factory strung with D'Addario EXL165s (.045/.065/.085/.105) in standard E–A–D–G tuning.
Owners requiring replacement parts should note that the B10 bridge accepts standard 19mm-spaced components, the P/J pickup configuration is a widely supported format, and the 32-inch scale length is a relevant parameter when sourcing replacement strings or a setup. A qualified guitar technician or luthier will be the best resource for setup work and confirming parts compatibility.
Nothing in The Vault is for sale. These records exist so the instruments stay documented after the manufacturer moves on — and the most useful part of that record is what owners add to it.
The catalog shot showed one finish, under one light, a long time ago. Yours has been played. Photos from owners are what the next person finds when they are trying to identify a part, match a finish, or work out whether the one they just bought is really what the seller said it was.
Specs only go so far. What actually fits, what breaks first, what the factory got right and what everyone ends up changing — that lives with the people who own them, not in a datasheet. Post what you know and it stays on this page for whoever comes looking next.
