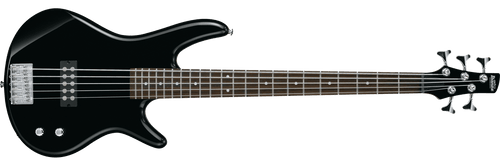

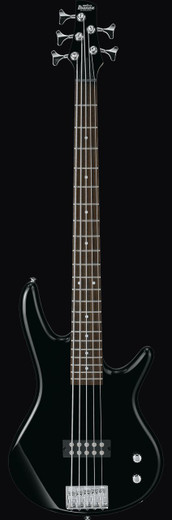

Ibanez produced the GSR105EXBK as a five-string entry in the GSR sub-line of the broader SR Series, positioned as an accessible electric bass aimed at players stepping into extended-range instruments. The GSR designation placed it in the more approachable tier of the SR family, retaining the series' emphasis on a slim, fast neck profile while keeping the specification set straightforward.
The bass was built around a poplar body paired with a maple neck carrying a jatoba fretboard with white dot inlays and medium frets. A 34-inch scale — 864mm — underpinned the low-B string's tension and definition. The nut width measured 45mm, widening to 67mm at the 22nd fret, with neck thickness running 21mm at the first fret and 22mm at the twelfth; the 305mm radius fretboard kept the playing surface relatively flat across those five strings. String spacing at the B15 bridge was set at 16.5mm. A passive PPD5 pickup handled the bridge position, and all hardware was finished in chrome. The finish on this variant was black.
Owners sourcing replacement parts should note that the B15 bridge, PPD5 pickup, and medium-gauge fret wire are the key service points; a qualified guitar technician or luthier can advise on compatible substitutes where original components are no longer available.
Nothing in The Vault is for sale. These records exist so the instruments stay documented after the manufacturer moves on — and the most useful part of that record is what owners add to it.
The catalog shot showed one finish, under one light, a long time ago. Yours has been played. Photos from owners are what the next person finds when they are trying to identify a part, match a finish, or work out whether the one they just bought is really what the seller said it was.
Specs only go so far. What actually fits, what breaks first, what the factory got right and what everyone ends up changing — that lives with the people who own them, not in a datasheet. Post what you know and it stays on this page for whoever comes looking next.
