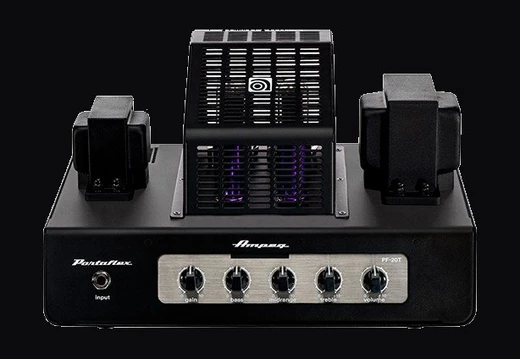

Ampeg produced the PF-20T-U as part of the Portaflex line, positioning it as an all-tube bass amplifier head rated at 20 watts. The unit carried forward the Portaflex heritage in a compact form factor, intended to deliver the harmonic character associated with all-tube amplifier designs.
The PF-20T-U runs an all-tube signal path with two 12AX7 preamp tubes. It provides 20 watts of output power at 8 ohms (10% THD) and offers a three-band tone stack: bass at +8/−12 dB at 50 Hz, midrange at +5/−15 dB at 550 Hz, and treble at +13/−20 dB at 4 kHz. Maximum input gain is 54 dB, and the signal-to-noise ratio is 60 dB (20 Hz–20 kHz, unweighted). The head includes a user-adjustable bias control to facilitate tube replacement without requiring a technician for that step. Both a preamp direct output and a transformer-balanced direct output are fitted, and the design does not require a speaker load connected for use — allowing silent recording or use as a dedicated tube DI. Power requirements cover 120VAC/60 Hz, 100VAC/50–60 Hz, and 220–240VAC/50–60 Hz, all at 50W draw. The unit measures 7.3 × 13.0 × 10.4 inches (185 × 330 × 264 mm) and weighs approximately 15.2 lb (6.9 kg).
Owners sourcing replacement tubes or setting bias after a retube should consult a qualified amplifier technician, particularly when working inside a tube amplifier chassis where lethal voltages are present even after power-off.
Nothing in The Vault is for sale. These records exist so the instruments stay documented after the manufacturer moves on — and the most useful part of that record is what owners add to it.
The catalog shot showed one finish, under one light, a long time ago. Yours has been played. Photos from owners are what the next person finds when they are trying to identify a part, match a finish, or work out whether the one they just bought is really what the seller said it was.
Specs only go so far. What actually fits, what breaks first, what the factory got right and what everyone ends up changing — that lives with the people who own them, not in a datasheet. Post what you know and it stays on this page for whoever comes looking next.
