At A Glance

Neck Type
GRGM / Maple neck
Top/Back/Body
Basswood body
Fretboard
Jatoba fretboard / Sharktooth inlay
Fret
Medium frets
Number of Frets
24
Bridge
F106 bridge
String Space
10.5mm
Neck Pickup
Infinity R (H) neck pickup (Passive/Ceramic)
Bridge Pickup
Infinity R (H) bridge pickup (Passive/Ceramic)
Factory Tuning
1E,2B,3G,4D,5A,6E
Strings
-
String Gauge
.010/.013/.017/.026/.036/.046
Nut
Plastic
Hardware Color
Chrome
Scale
22.2
A : Width
41mm at NUT
B : Width
56mm at 24F
C : Thickness
19.5mm at 1F
D : Thickness
21.5mm at 12F
Radius
400mmR
Color
White
Series
miKro
Description

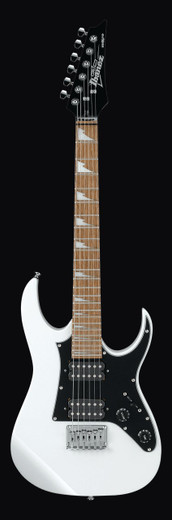

Ibanez built the GRGM21WH as part of the miKro Series, a line designed around a reduced scale length and compact body to serve players who needed a shorter reach — whether younger beginners or experienced players seeking a more manageable instrument. It sat at the entry level of the GRG family within the broader GIO range.

The guitar was constructed with a basswood body and a maple neck carrying the GRGM profile, topped with a jatoba fretboard fitted with sharktooth inlays and 24 medium frets. The 22.2-inch scale and 41mm plastic nut width define the instrument's compact character. Two passive ceramic Infinity R humbuckers — one at the neck, one at the bridge — handled the pickup complement, mounted to an F106 bridge with 10.5mm string spacing. Hardware throughout was finished in chrome. The neck dimensions measured 19.5mm thick at the first fret and 21.5mm at the twelfth, with a 400mm radius fretboard and a width of 56mm at the 24th fret. The guitar left the factory strung to standard E-to-E tuning with a .010–.046 gauge set.

Owners sourcing replacement parts — including bridge saddles compatible with the F106, nut blanks cut to 41mm, or pickup rings suited to the compact body — should consult a qualified guitar technician who can verify fit against the instrument's actual dimensions before installation.
