At A Glance

Neck Type
GRG7 / Maple neck
Top/Back/Body
Poplar body
Fretboard
Maple fretboard / Black dot inlay
Fret
Jumbo frets
Number of Frets
24
Bridge
Ibanez F107 bridge
String Space
10.5mm
Neck Pickup
Infinity R (H) neck pickup (Passive/Ceramic)
Bridge Pickup
Infinity R (H) bridge pickup (Passive/Ceramic)
Factory Tuning
1E,2B,3G,4D,5A,6E,7B
Strings
-
String Gauge
.009/.011/.016/.024/.032/.042/.054
Nut
Plastic
Hardware Color
Black
Scale
648mm/25.5"
A : Width
48mm at NUT
B : Width
68mm at 24F
C : Thickness
20.5mm at 1F
D : Thickness
22.5mm at 12F
Radius
400mmR
Color
Metallic Light Blue
Description

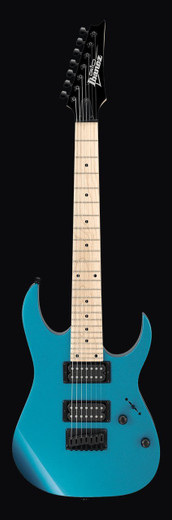

Ibanez built the GRG7221MMLB as part of the GRG (Gio RG) sub-line, positioning it as an entry-level seven-string in the broader RG family. The model carried the RG Gio Series designation and was finished in Metallic Light Blue.

The guitar was constructed with a poplar body and a maple neck carrying the GRG7 profile. The maple fretboard ran 24 jumbo frets with black dot inlays, a 400mm radius, and a 648mm (25.5") scale length. Nut width measured 48mm, widening to 68mm at the 24th fret, with neck thickness of 20.5mm at the first fret and 22.5mm at the twelfth. The plastic nut fed into an Ibanez F107 bridge set at 10.5mm string spacing. Both pickup positions carried passive, ceramic-magnet Infinity R humbuckers. All hardware was finished in black. Factory tuning was set B–E–A–D–G–B–E low to high, with a string gauge of .009/.011/.016/.024/.032/.042/.054.

Owners sourcing replacement parts should note that the F107 bridge accepts strings at 10.5mm spacing, and the 48mm plastic nut is a standard dimension on this platform — a qualified guitar technician can confirm compatible replacements for either component.
