At A Glance

Neck Type
SR4 / 5pc Maple/Walnut neck
Top/Back/Body
Maple body
Fretboard
Jatoba / White dot inlay
Fret
Medium frets
Bridge
Accu-cast B120 bridge
String Space
19mm
Neck Pickup
PowerSpan Dual Coil neck pickup (Passive)
Bridge Pickup
PowerSpan Dual Coil bridge pickup (Passive)
Equaliser
Ibanez Custom Electronics 3-band EQ w/3-way Power Tap switch
Hardware Color
Cosmo black
Scale
864mm/34"
A : Width
38mm at NUT
B : Width
62mm at 24F
C : Thickness
19.5mm at 1F
D : Thickness
21.5mm at 12F
Radius
305mmR
Finish
Natural Browned Burst
Description

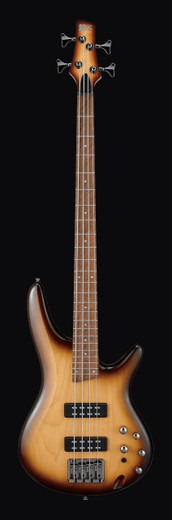

Ibanez produced the SR370ENNB as part of the SR (Soundgear) Series, a long-running line of electric basses positioned around an emphasis on slim, fast-playing neck profiles and lightweight construction. The SR370ENNB occupied a mid-tier position within the SR family, offering passive pickup hardware paired with active onboard equalization.

The bass was built around a maple body with a five-piece Maple/Walnut SR4 neck joined to a Jatoba fretboard bearing white dot inlays and medium frets. The nut width measures 38mm, widening to 62mm at the 24th fret, with neck thickness of 19.5mm at the first fret and 21.5mm at the 12th fret — dimensions consistent with the SR line's characteristically slim profile. The fretboard radius is 305mmR and the scale length runs 864mm (34 inches). Two PowerSpan Dual Coil passive pickups — one at the neck position, one at the bridge — feed into an Ibanez Custom Electronics 3-band EQ with a 3-way Power Tap switch, providing tonal flexibility from passive pickups within an active preamp circuit. The Accu-cast B120 bridge is set at 19mm string spacing. All hardware is finished in cosmo black.

Owners requiring setup assistance, fretwork, or guidance on sourcing compatible replacement parts — including bridge saddles, tuning machines finished in cosmo black, or PowerSpan-compatible pickups — should consult a qualified guitar or bass technician.
